**PLEASE NOTE POWER LEADS SOLD SEPARATELY - VIEW HERE**

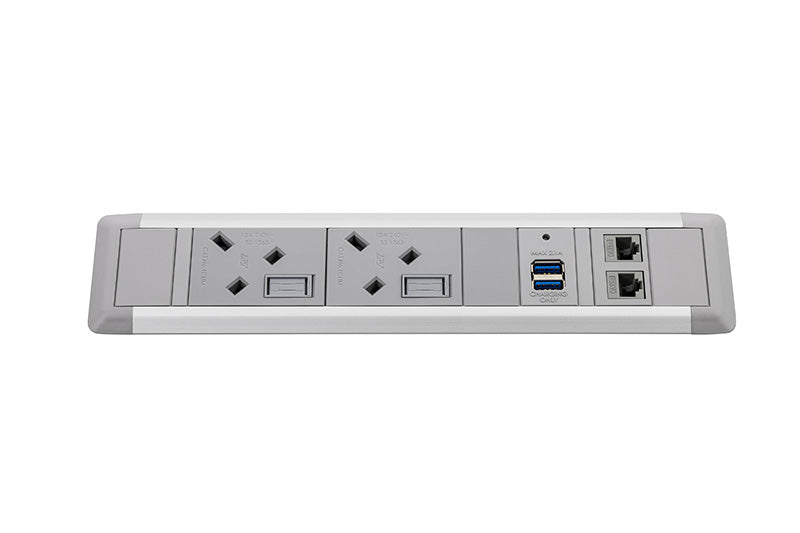

**USB CHARGING SOCKETS ARE NOW PROVIDED WITH 1 x TYPE A and 1 x TYPE C SOCKET**

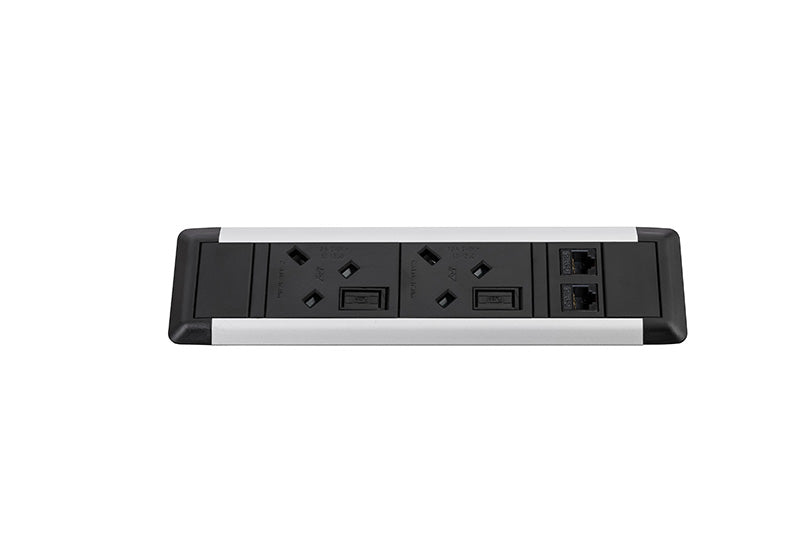

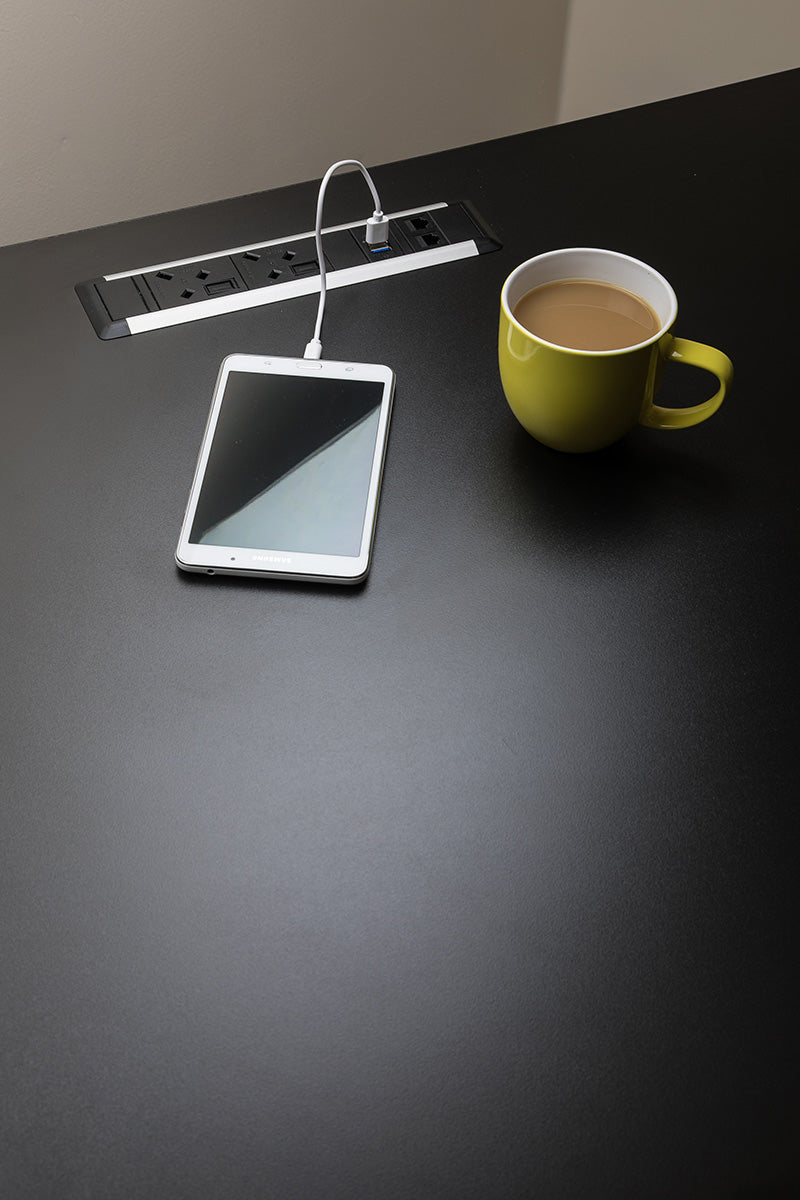

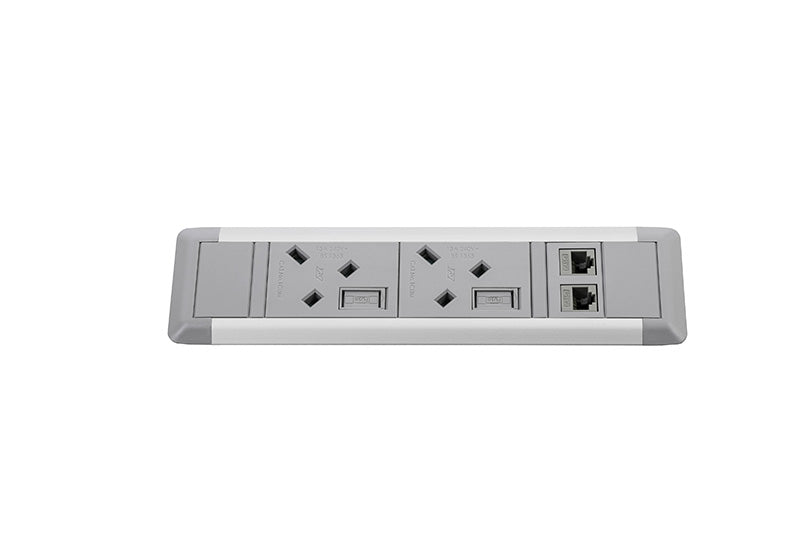

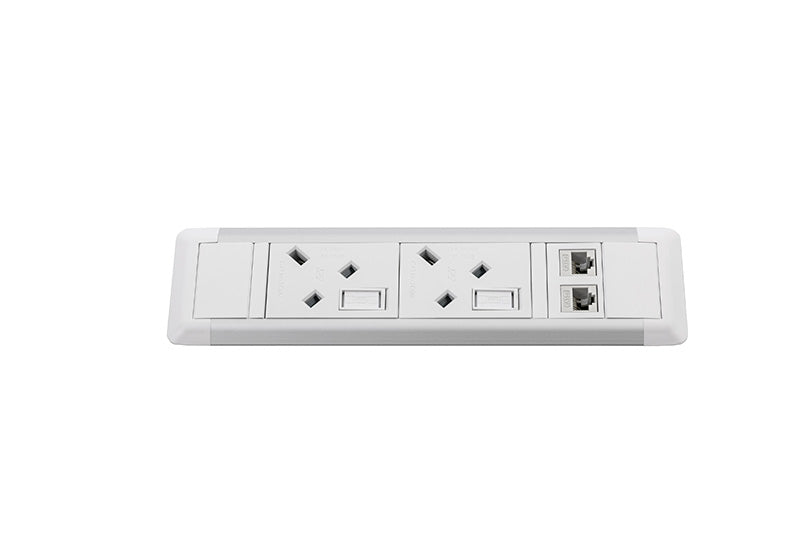

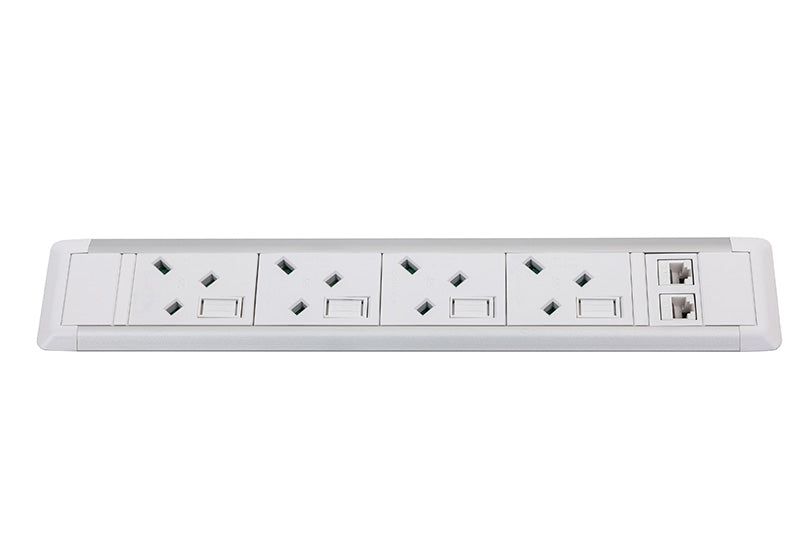

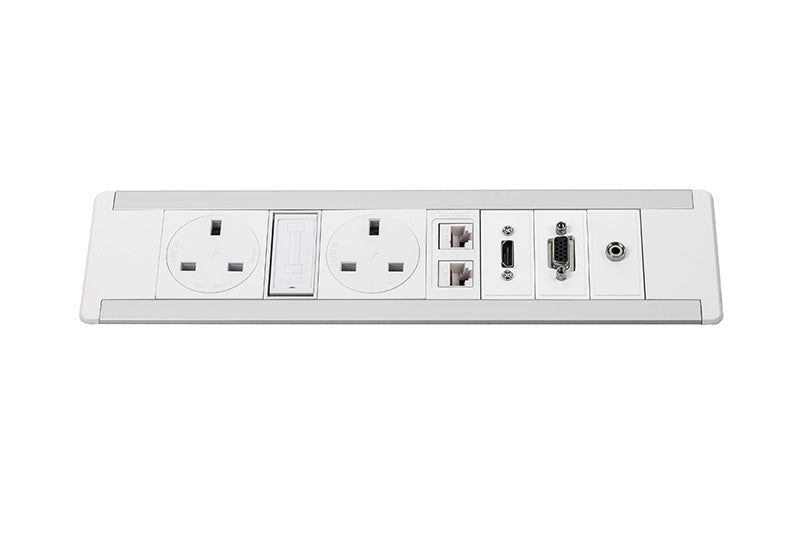

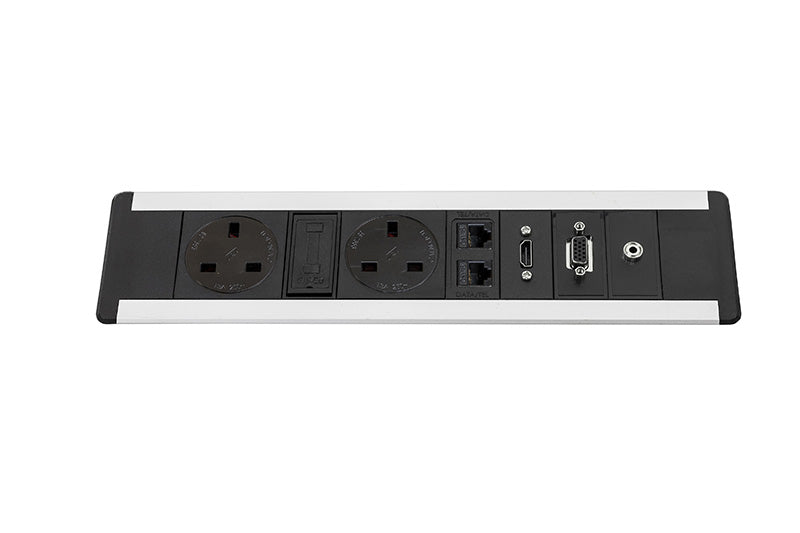

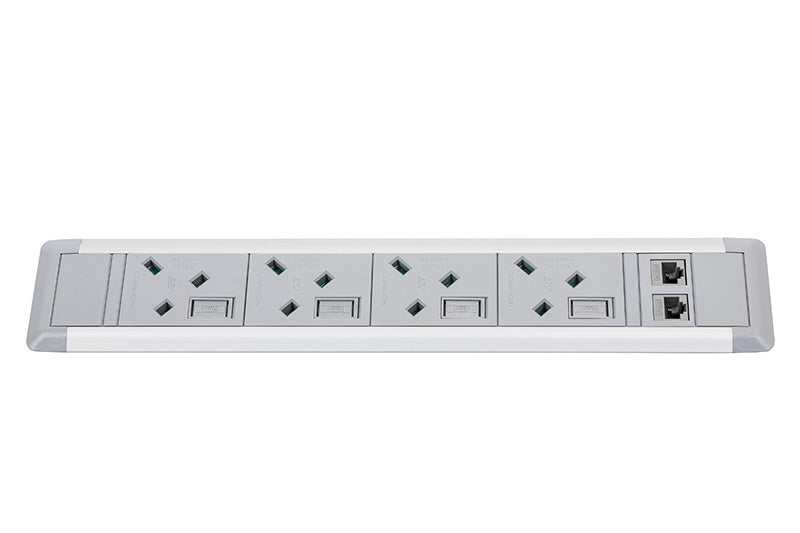

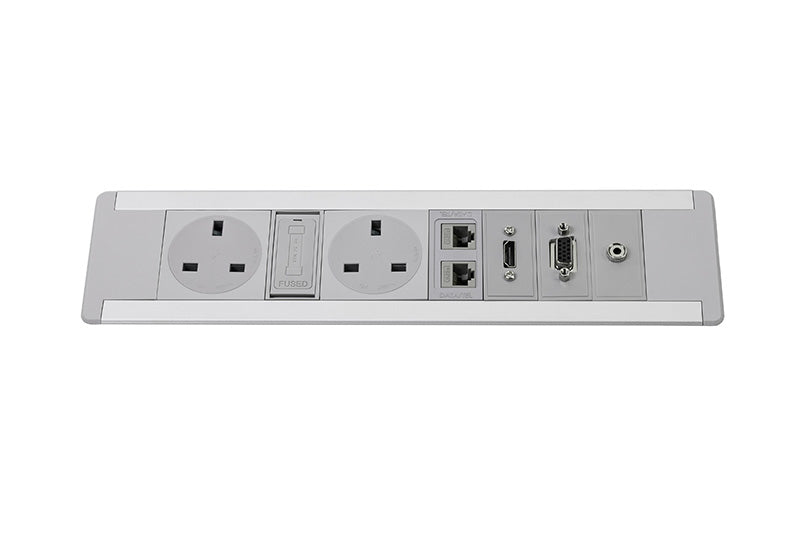

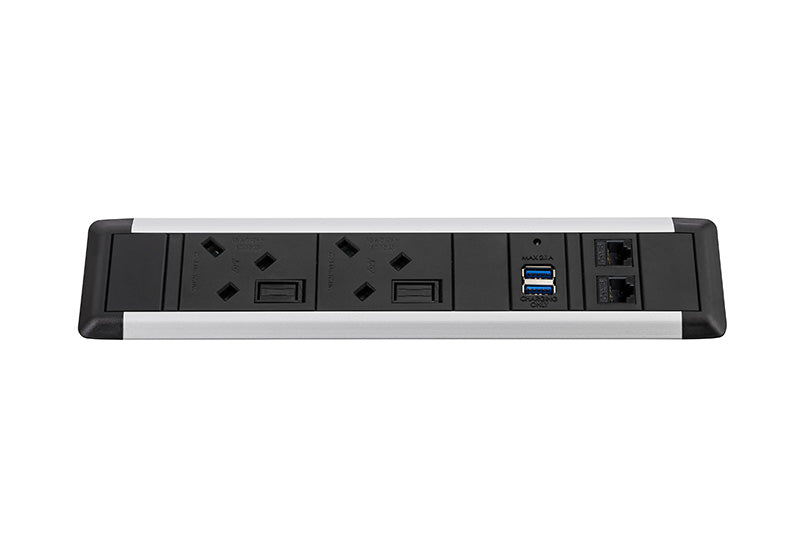

Simplify and manage your desk with easy access to power and data with the in-desk mounted Omega unit.
These units can be customised according to the number of power, voice/data, switches and protection devices required, as well as bespoke layouts and configurations.
FEATURES
-
Available with modular protection modules (power filters, circuit breakers, earth leakage devices)
-
Modular – any combination of power and/or data/voice and peripheral connectors available
-
Up to 30 different international socket types can be fitted
-
The selection of 23 different angles of orientation of each socket
(certain local regulations limit options in some instances) -
Can be supplied with two or more circuits in one unit
-
Hybrid power (power and data in one unit)
ELECTRICAL
Operating Voltage: 220V - 250V @ 50 Hz
110V - 125V AC @ 60 Hz
Current: 15A (20A - upgraded wiring)
Max Power: 1800W @ 110V - 125V AC
3000W @ 220V - 250V AC
Local electrical regulations determine the final electrical rating of the system.
For higher current ratings, please consult your distributor directly.
DIMENSIONS - STANDARD OMEGA
Cut-out Width: 67mm (Approx. 2-3/5 in.)
Cut-out Length: Determined by Configuration
Total Height: 50mm (Approx. 2 in.)
DIMENSIONS - SLIMLINE OMEGA
Cut-out Width: 55mm (Approx. 2-1/10 in.)
Cut-out Length: Determined by Configuration
Height: 42mm (Approx. 1-7/10 in.)
