A professional power and connectivity solution designed for modern workspaces.

SKU: Commercial quantities available
Workspace ready Designed for professional office and commercial environments.
Simple installation Straightforward to specify, configure and install.
Product support 1-year warranty and UK product guidance included.

Or call for a price: 03301 330 430

UK Delivery Delivered directly to your door
1-Year Warranty Warranty included with your purchase
VAT Invoice Suitable for business purchases
View full details

Product information

Power at the touch of a button. Hidden when not in use.

01

Workspace ready

Designed for professional office and commercial environments.

02

Simple installation

Designed to make specification and installation straightforward.

03

Technical support

Product guidance and supporting information available.

Product overview

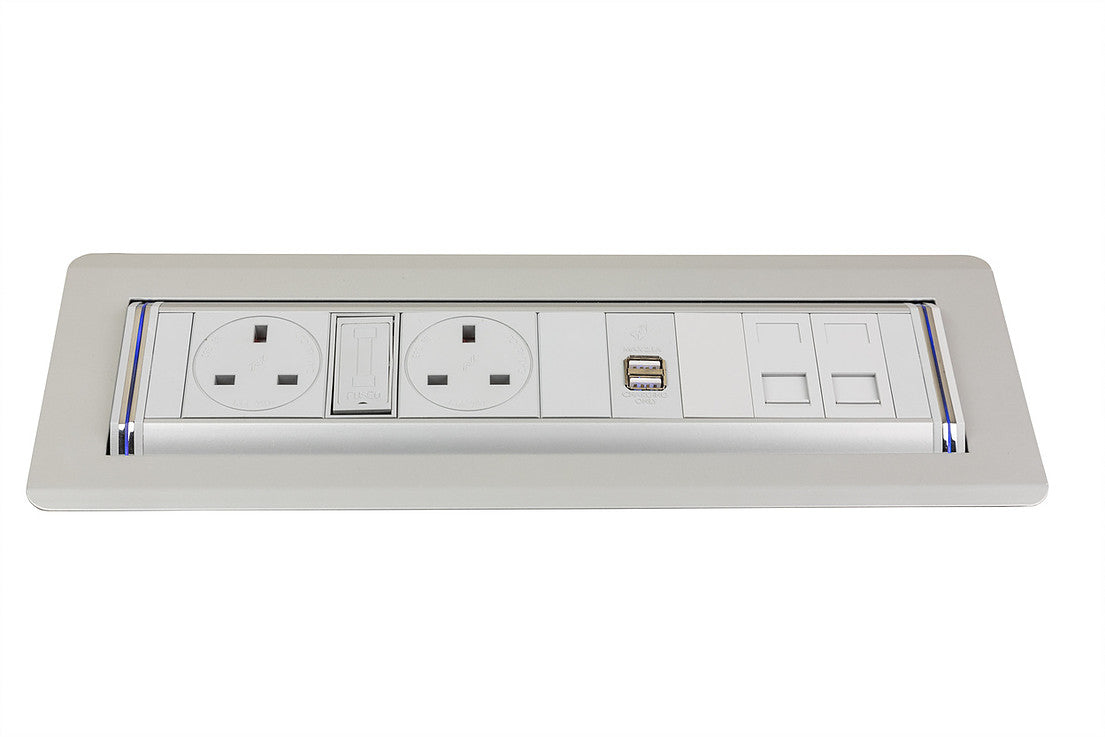

The One-Touch Electric Rotadock is a premium motorised in-desk power and connectivity unit designed for boardrooms, meeting tables and executive workspaces.

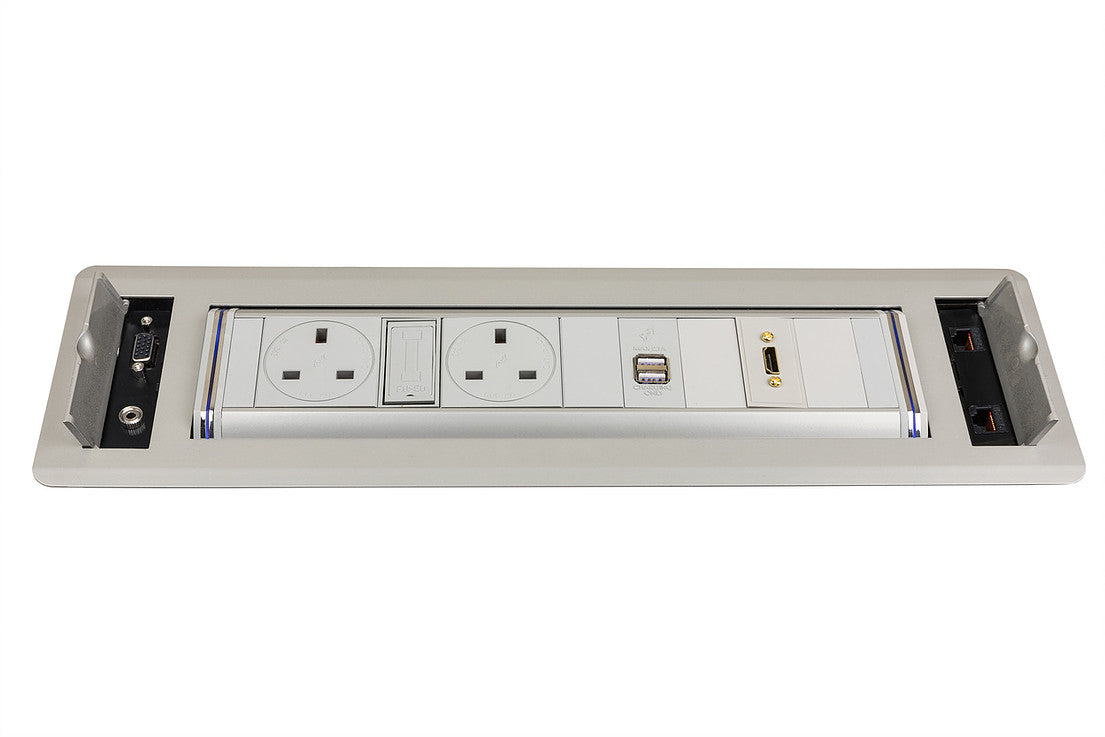

Touch-sensitive controls automatically rotate the unit open to reveal the sockets and connection ports, then return it to a near-flush closed position when no longer required. Configurations can combine UK power, USB-C charging, data and AV connections within a clean aluminium housing.

Technical specifications
  • Product type: Motorised rotating in-desk power and connectivity unit
  • Operation: Touch-sensitive LED controls open and close the unit electronically
  • Construction: Premium aluminium housing
  • Power sockets: Individually fused UK sockets available depending on configuration
  • Connectivity options: USB-C, Cat6 data, HDMI and audio connections are available
  • Configuration: Power, charging, data and AV connections can be combined within one unit
  • Circuit options: Can be supplied with multiple electrical circuits
  • Protection options: Compatible with modular protection devices including power filters, circuit breakers and earth-leakage protection
  • International options: Approved international socket formats are available
  • Operating voltage: 220–250V AC at 50Hz
  • Documented current rating: 15A
  • Maximum documented power: 3000W at 220–250V AC
  • Final rating: Subject to the selected configuration and applicable local electrical regulations
Dimensions and installation

Cut-out width: 115mm
Cut-out length: Varies depending on the selected configuration
Height when open: Approximately 107mm
Compatible work-surface thickness: 10–50mm
Installation: The unit is lowered into the prepared desktop opening and secured using four slide-on ratchet clips

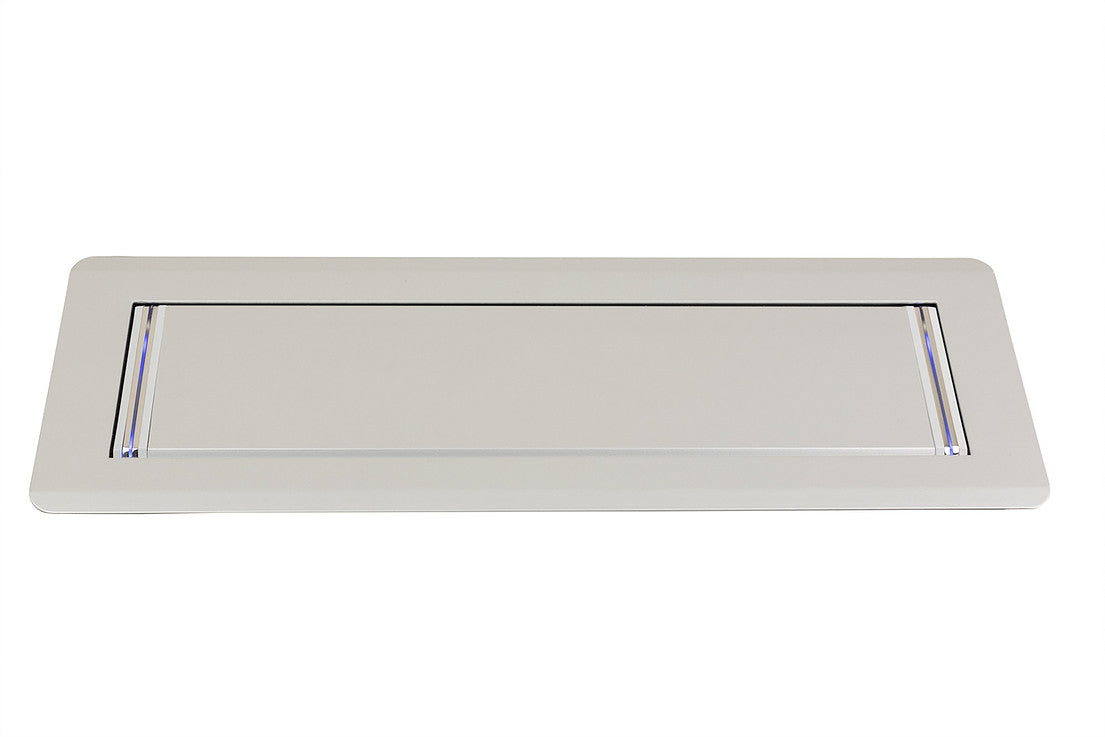

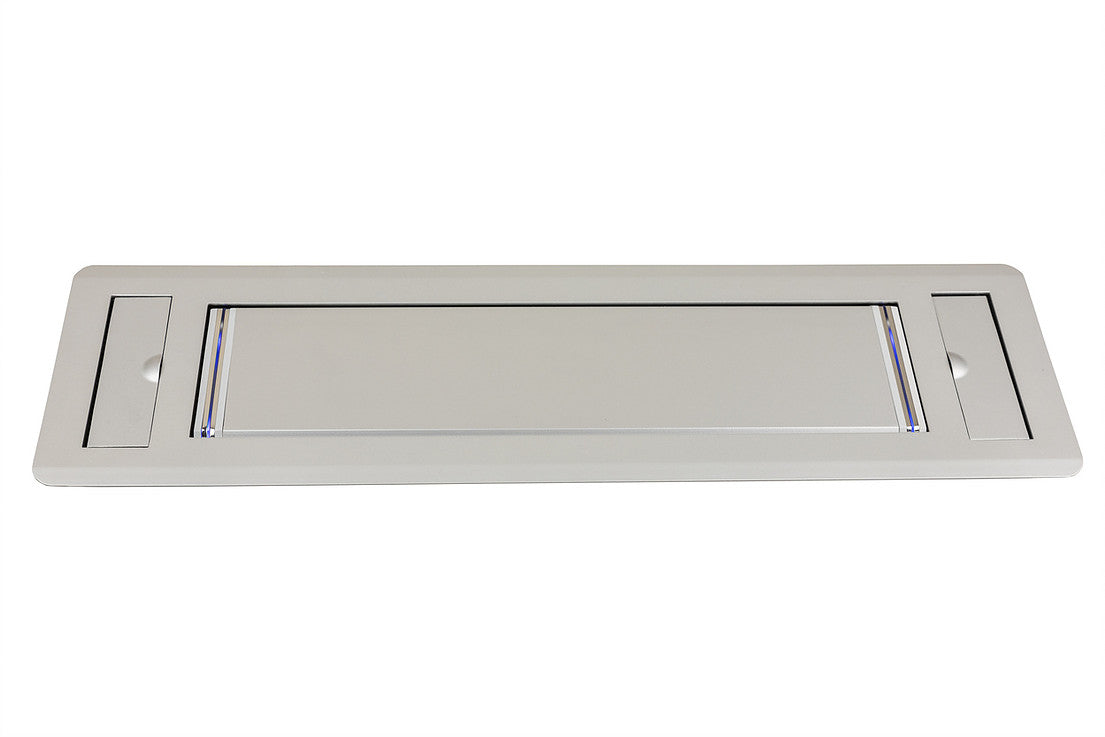

Closed position: Sits almost flush with the work surface to minimise obstruction
Open position: The connection interface is raised above the desktop, helping reduce the risk of minor liquid ingress
Important: Obtain the approved configuration drawing before cutting the work surface, as the required length changes with the number and type of fitted connections
