Desktop Power

Rotadock

A professional power and connectivity solution designed for modern workspaces.

SKU: ROT2C3-12B0 Commercial quantities available

Workspace ready Designed for professional office and commercial environments.

Simple installation Straightforward to specify, configure and install.

Product support 1-year warranty and UK product guidance included.

All Black All White

Mains power lead sold separately.

A compatible GST18 mains lead is required to connect this unit to a UK socket. Your basket will be checked before checkout.

Choose a mains power lead

From

£177.50 ex VAT

£213.00 including VAT

£177.50 ex VAT

£213.00 including VAT

Sale Sold out

Available to order Usually dispatched within 1–3 working days

Mains power lead sold separately. We’ll check your basket before checkout so the correct lead is not missed.

Unsure which configuration you need? Ask our product team

Secure UK checkout

1-year warranty

Expert support

UK Delivery Delivered directly to your door

1-Year Warranty Warranty included with your purchase

VAT Invoice Suitable for business purchases

View full details

Product information

Rotate into power. Return to a clear surface.

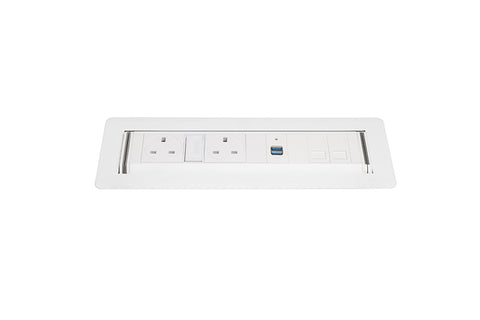

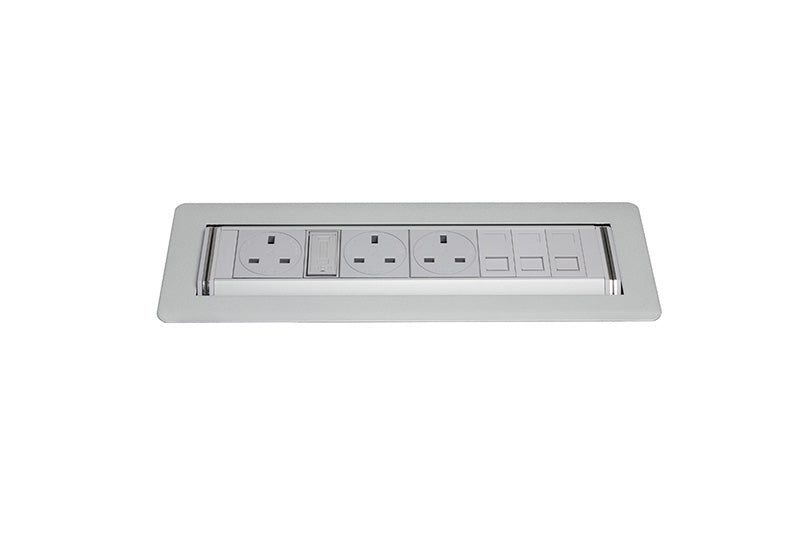

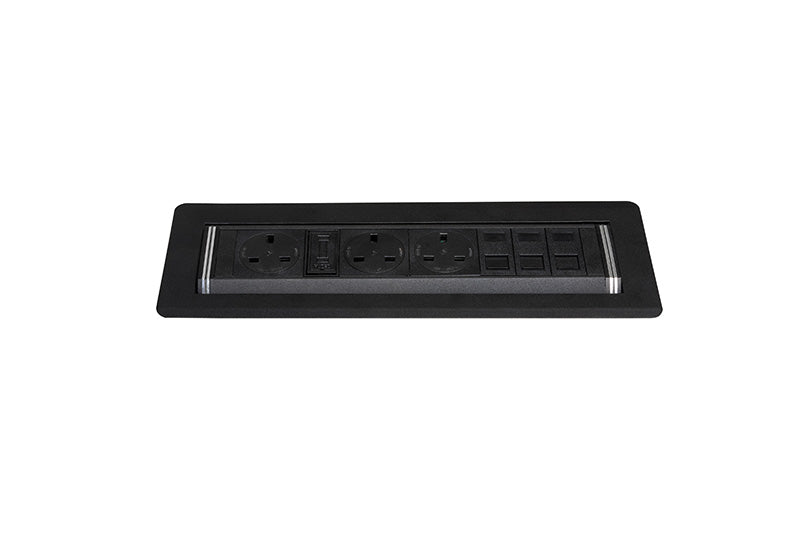

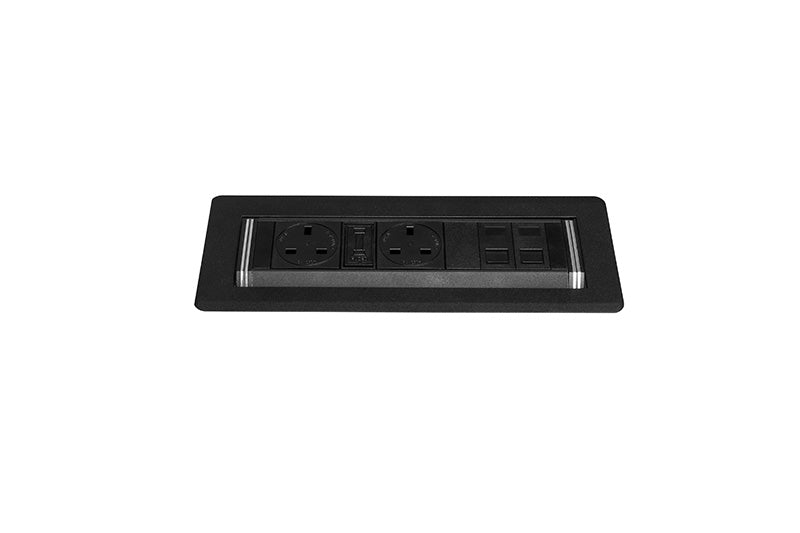

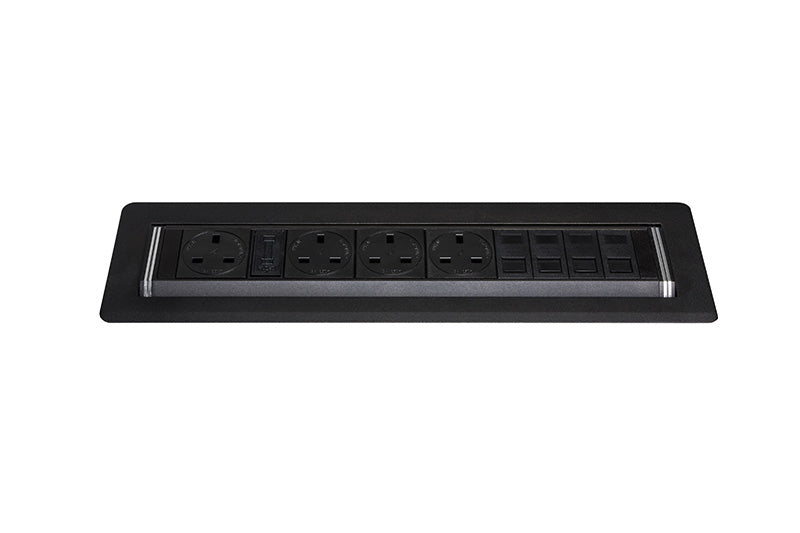

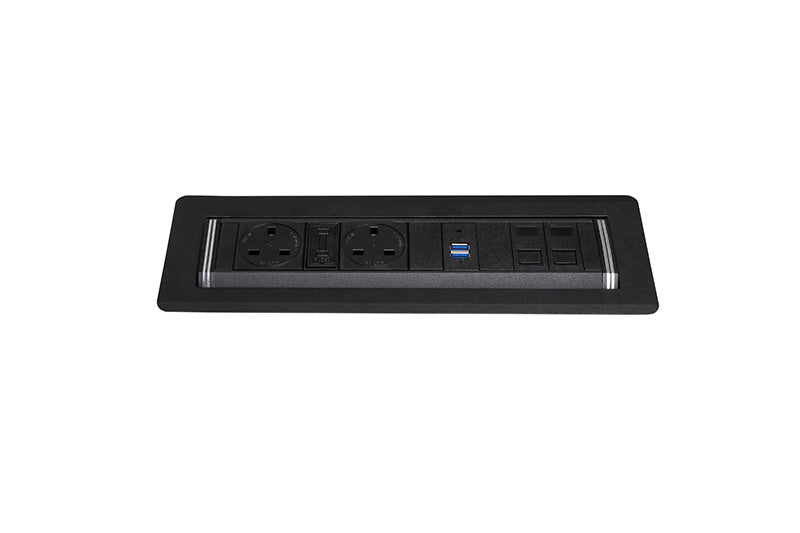

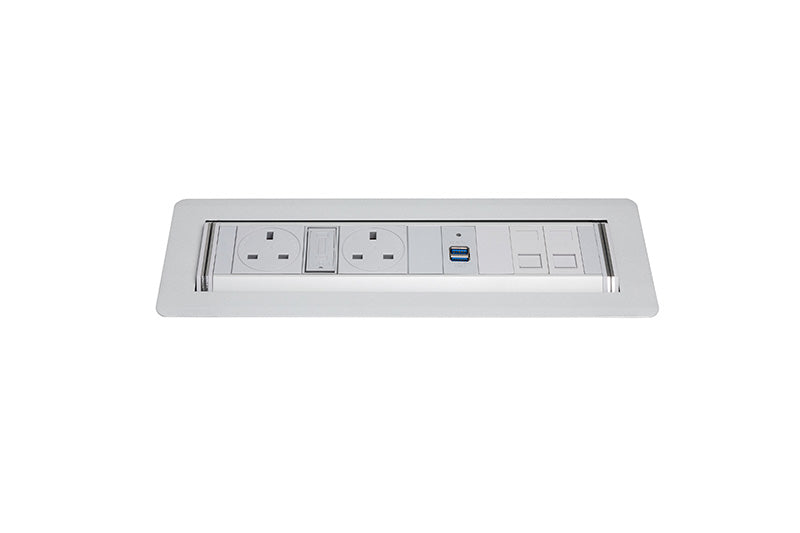

Rotadock is a manually operated rotating in-desk power unit that provides easy access to power, 90W dual USB-C charging and optional data or AV connections. The interface locks securely in both its open and closed positions, allowing it to sit neatly within the work surface when not required. It is particularly suited to boardrooms, meeting tables and collaborative workspaces.

Workspace ready

Designed for professional office and commercial environments.

Simple installation

Designed to make specification and installation straightforward.

Technical support

Product guidance and supporting information available.

Product overview

Turn your boardroom into a state of the art meeting place with the sleek Rotadock!

With a wide range of options the Rotadock In Desk Power Module will simplify any area where it is used while providing easy access to services when required.

All units with USB charging are now supplied with 90W Dual Type C, as standard.

FEATURES

Available with modular protection modules (power filters, circuit breakers, earth leakage devices)
Up to 30 different international socket types can be fitted
Can be supplied with two or more circuits in one unit

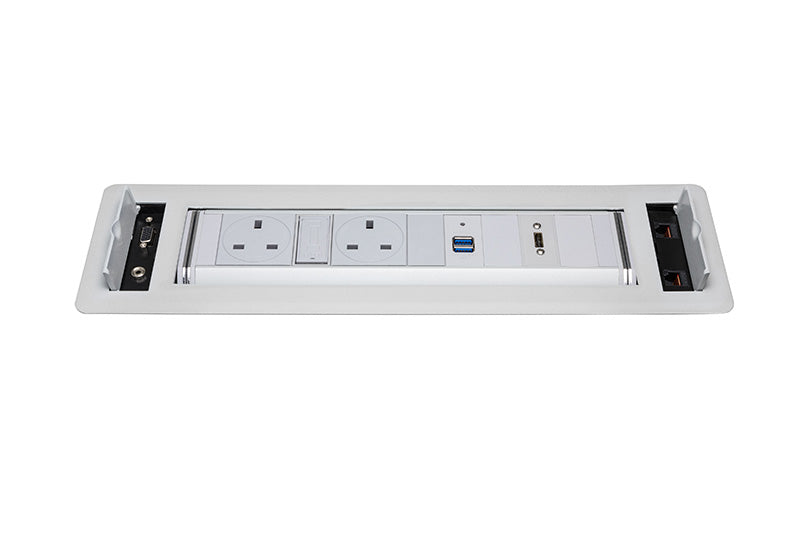

Hybrid power (power and data in one unit)

Technical specifications

Product type: Rotating in-desk power and connectivity unit
Opening mechanism: Manually rotates and locks securely in both the open and closed positions
Power sockets: Individually fused UK power sockets, depending on configuration
USB charging: 90W dual USB-C charging on USB-equipped configurations

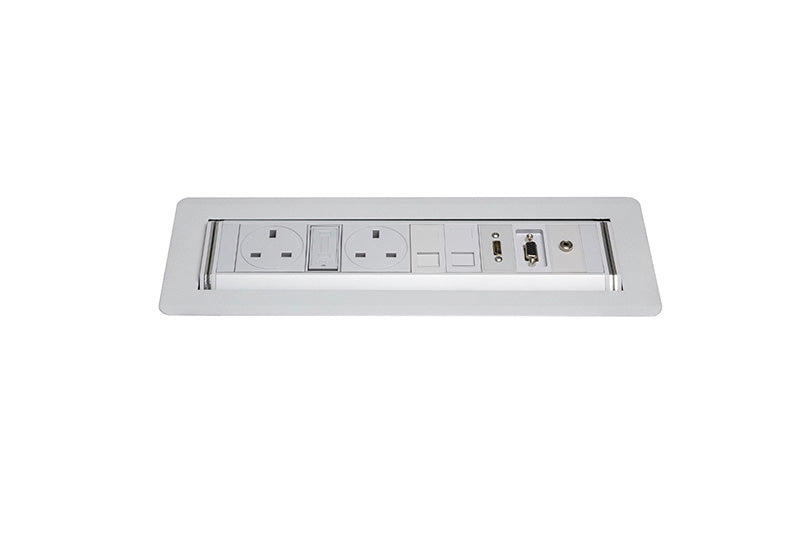

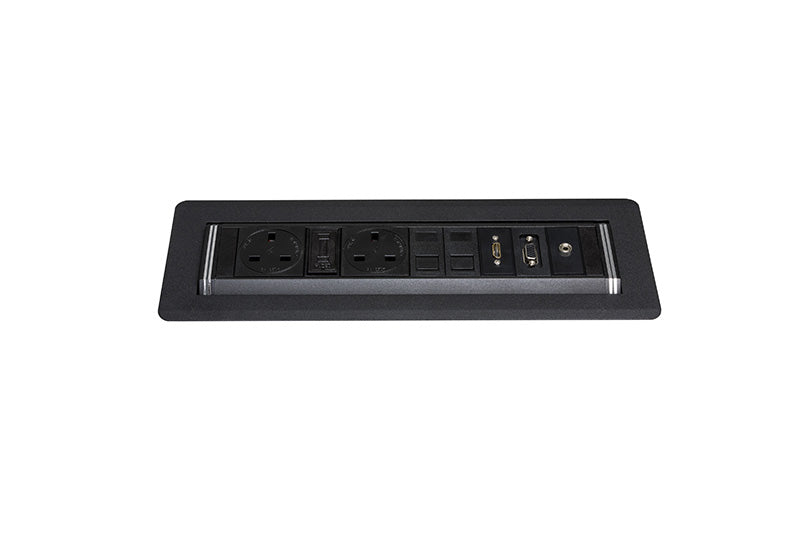

Connectivity options: Cat5e, Cat6, USB, HDMI, VGA, audio and RCA options are available
Configuration: Power, charging, data and AV connections can be combined within one unit
Electrical supply: 220–250V AC, 50Hz
Maximum documented load: 3000W, subject to the selected configuration and applicable electrical regulations
Finish options: Black, white and silver/grey

Dimensions and installation

Cut-out width: 115mm
Cut-out length: Varies depending on the selected configuration
Height when open: Approximately 107mm
Compatible worktop thickness: 10–50mm
Installation: Four ratchet clips secure the unit within the prepared desktop cut-out

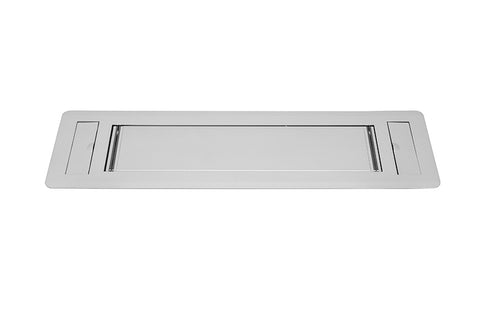

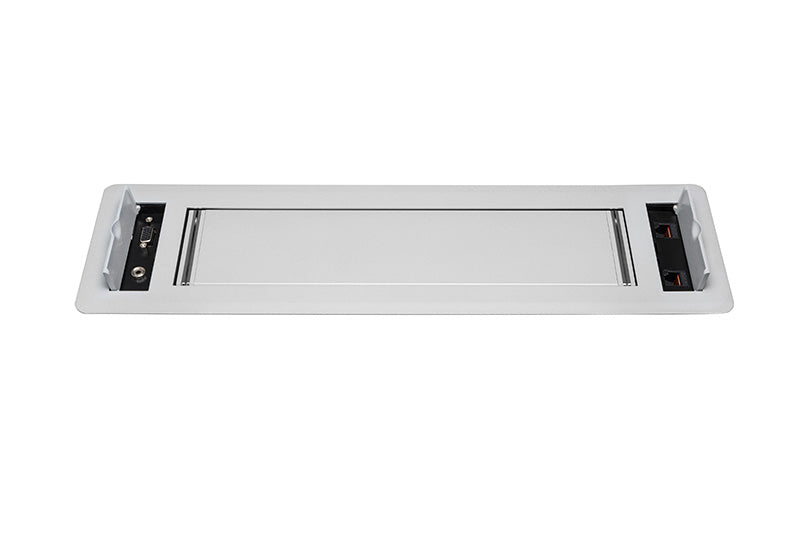

Closed position: Sits almost flush with the work surface

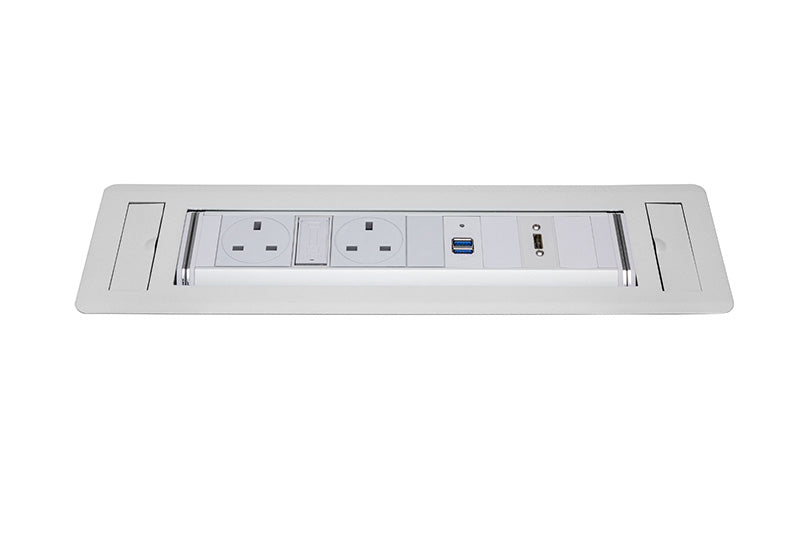

Open position: The connection interface is raised above the desktop, helping reduce the risk of minor liquid ingress
Important: Confirm the configuration-specific cut-out length before cutting the desktop

Downloads

Download the Rotadock in desk Power Unit Data Sheet

Delivery and warranty

Delivery charges shown apply to most UK mainland addresses. Some locations may be subject to an additional delivery charge. For delivery outside UK mainland, or to areas with restricted carrier coverage, please contact us for a quotation.

All purchases include a 1-year warranty.
