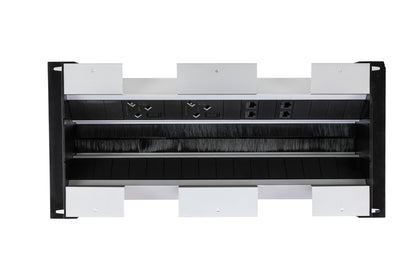

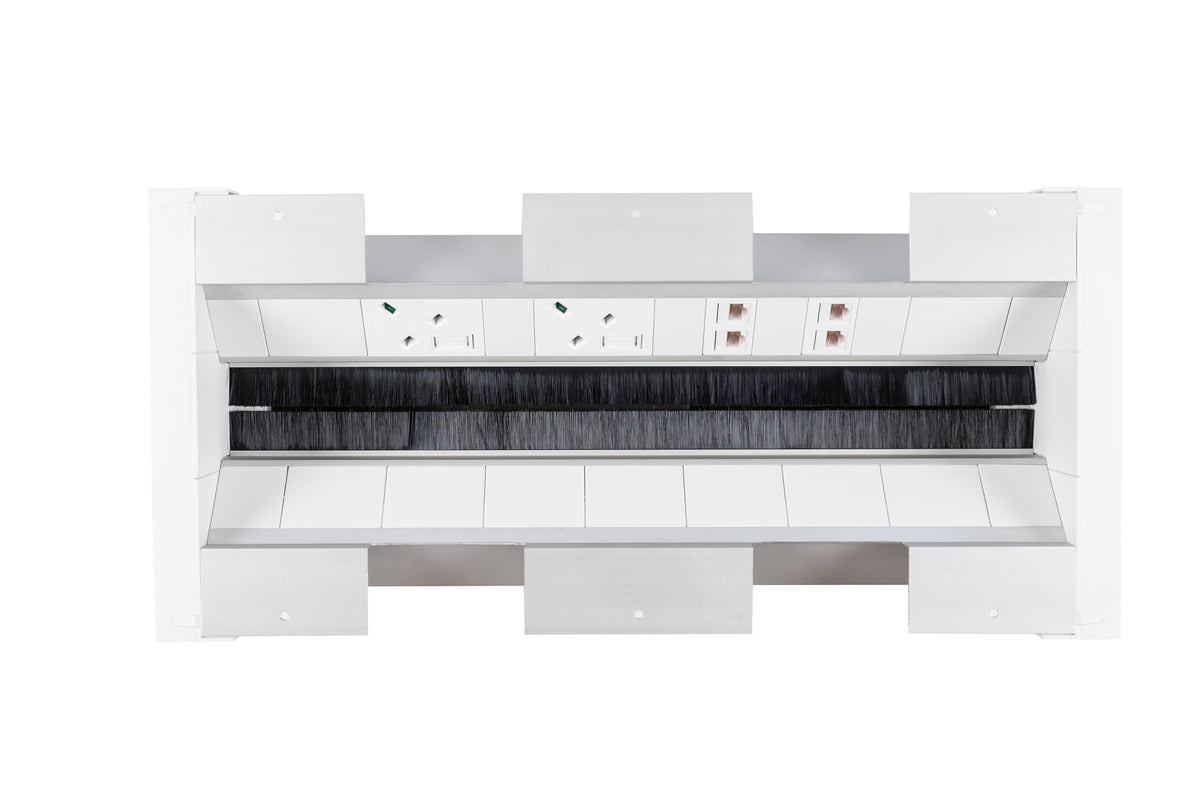

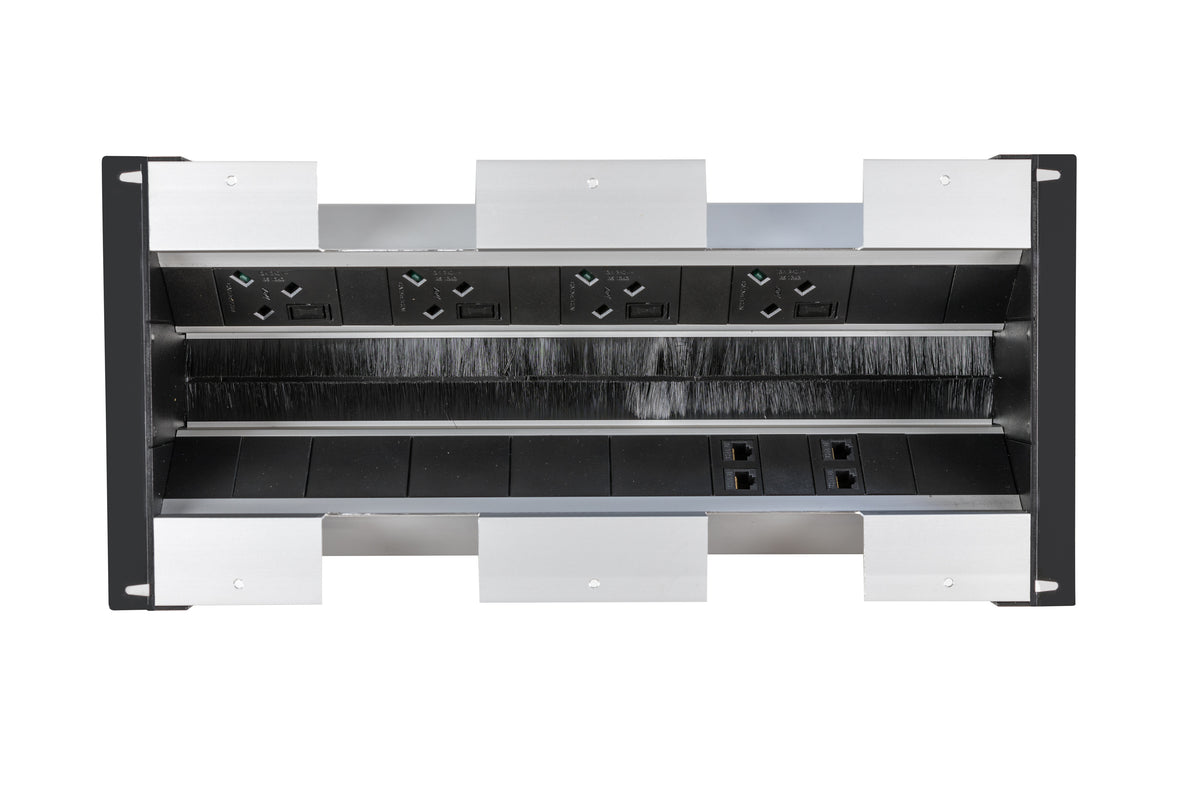

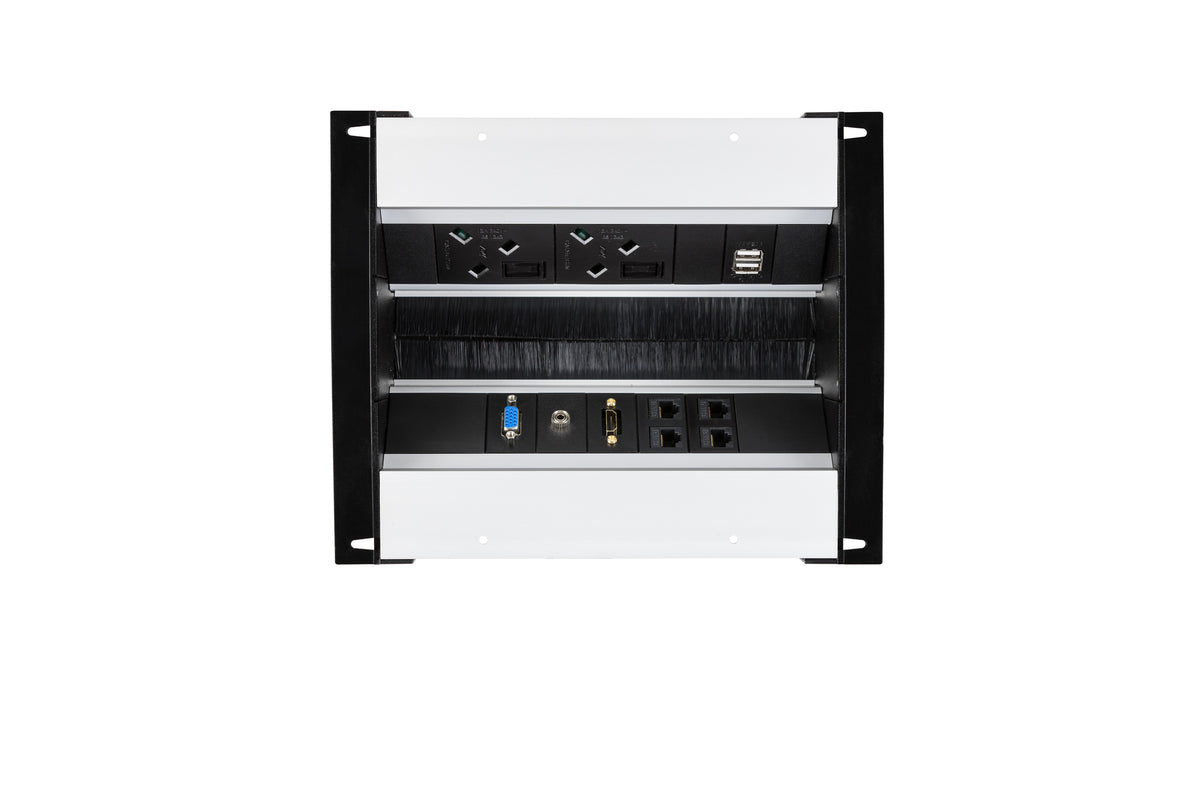

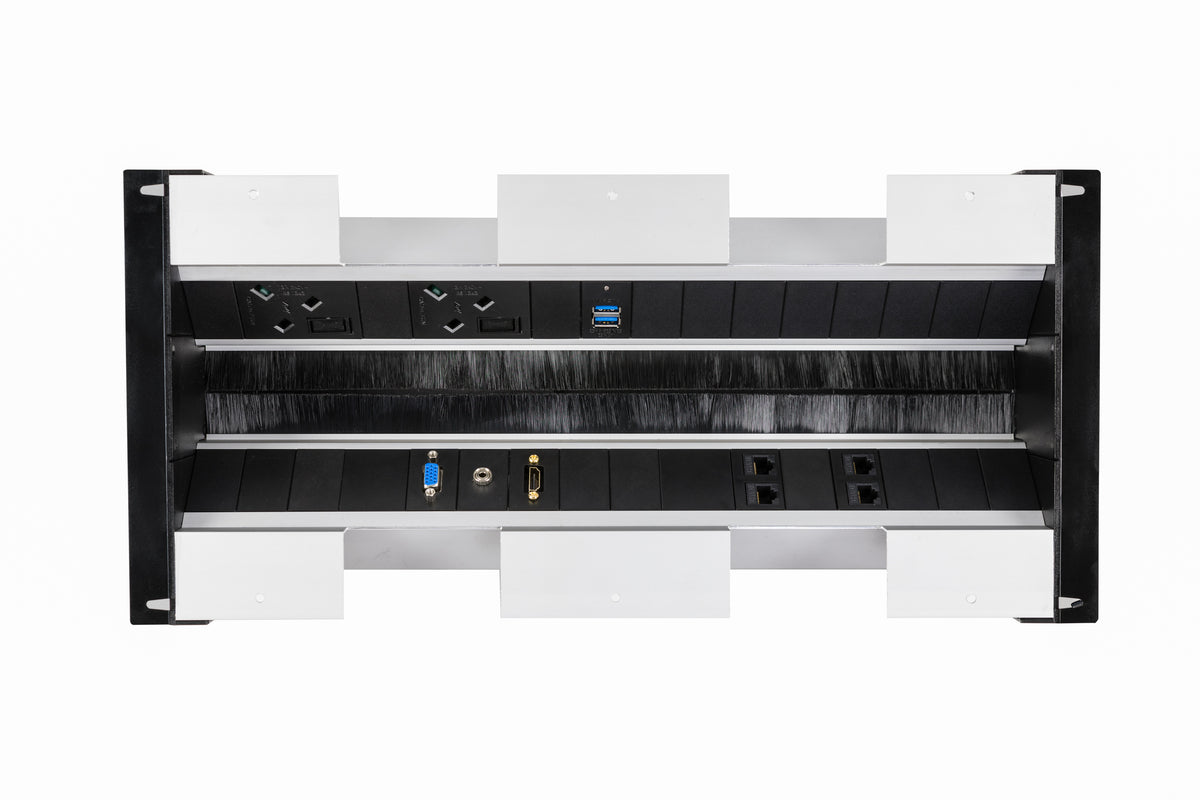

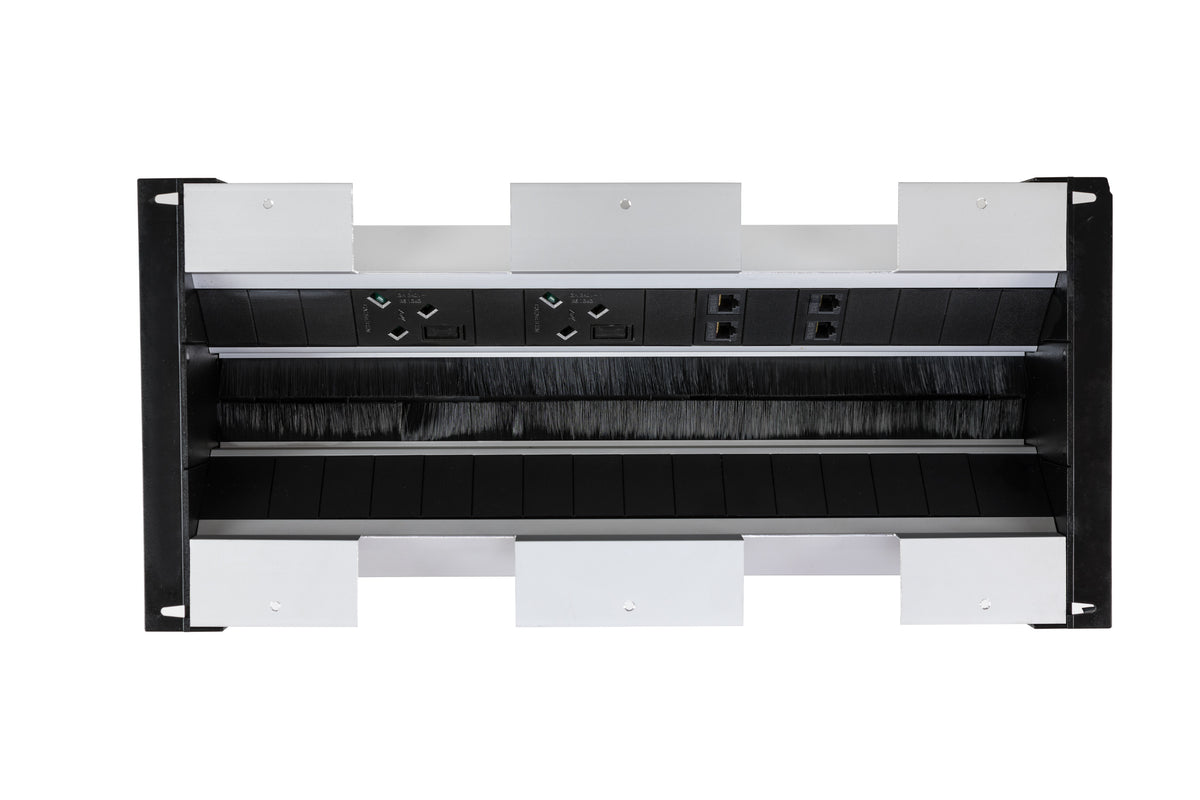

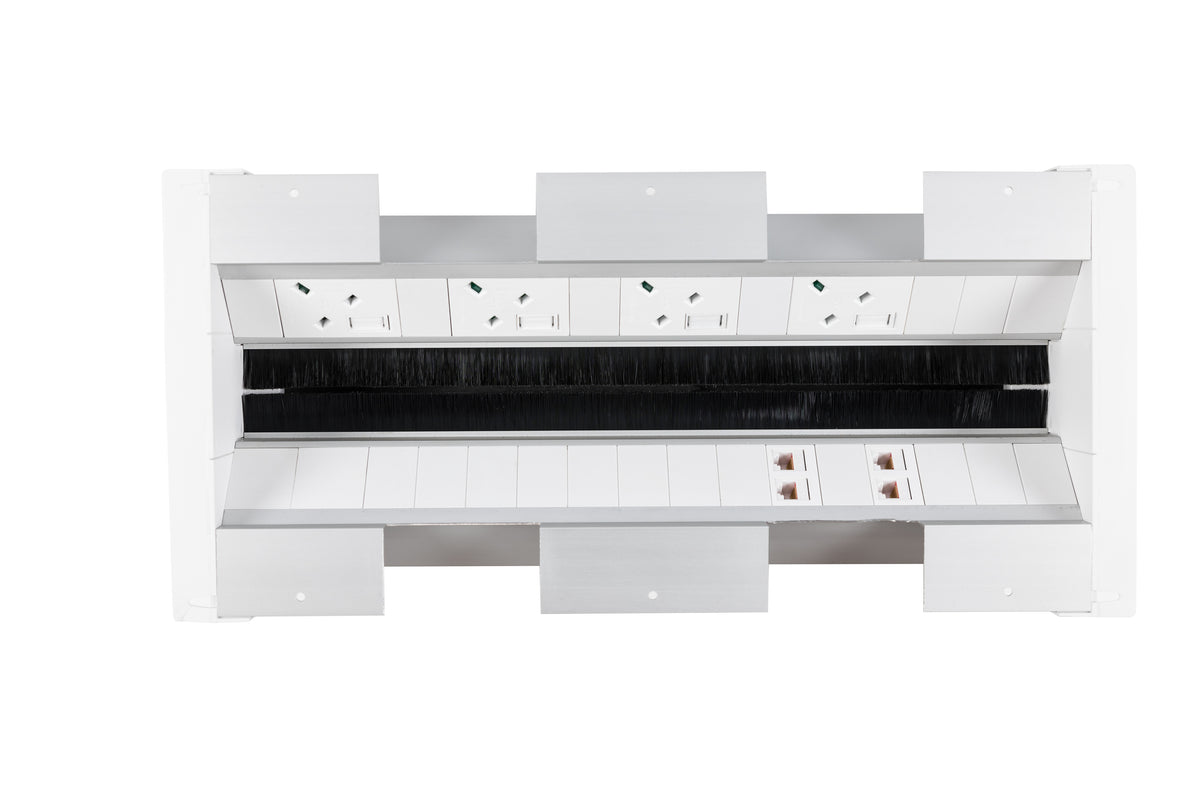

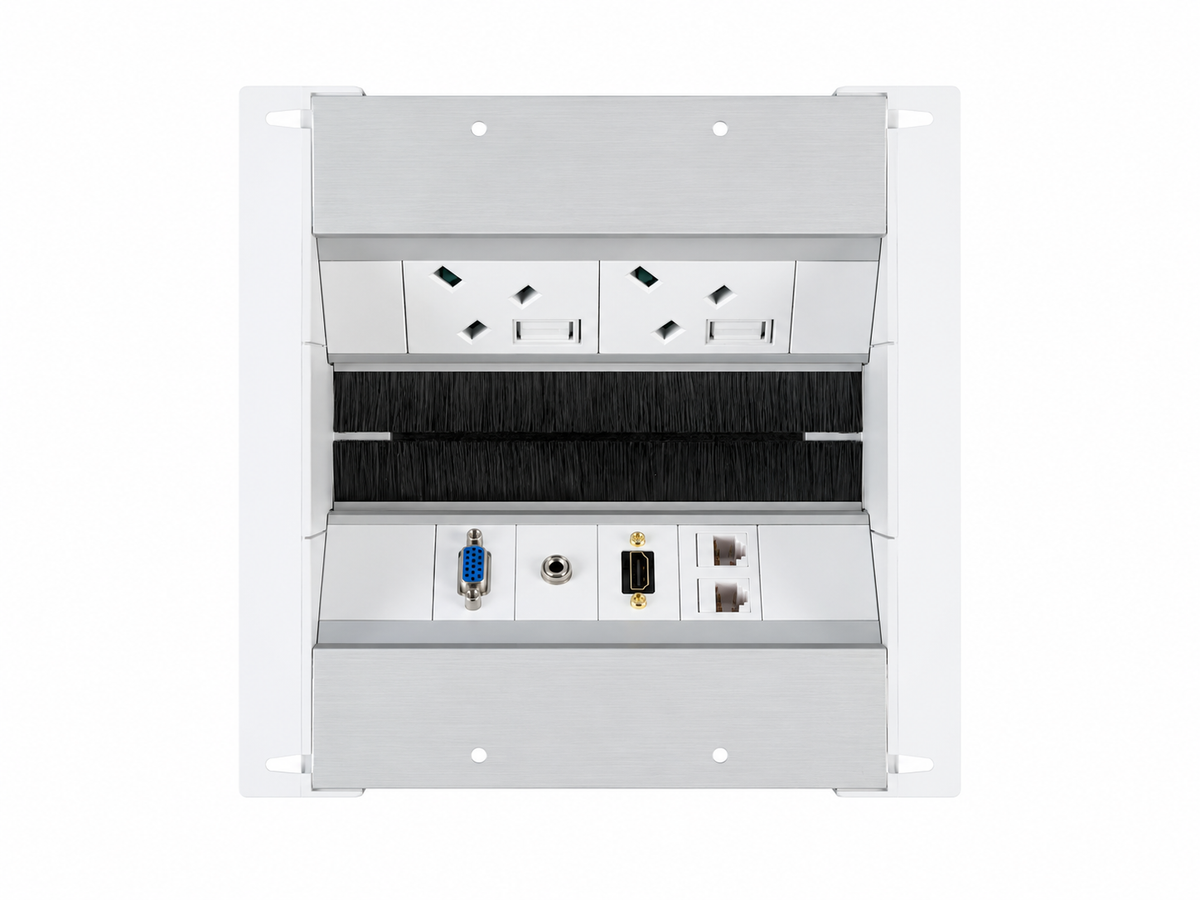

Desktop Power

V Dock

A professional power and connectivity solution designed for modern workspaces.

SKU: V1-204-1066HSA2 Commercial quantities available

Workspace ready Designed for professional office and commercial environments.

Simple installation Straightforward to specify, configure and install.

Product support 1-year warranty and UK product guidance included.

Silver & Black Silver & White

Mains power lead sold separately.

A compatible GST18 mains lead is required to connect this unit to a UK socket. Your basket will be checked before checkout.

Choose a mains power lead

From

£140.00 ex VAT

£168.00 including VAT

£140.00 ex VAT

£168.00 including VAT

Sale Sold out

Available to order 4-5 weeks from receipt of order

Mains power lead sold separately. We’ll check your basket before checkout so the correct lead is not missed.

Unsure which configuration you need? Ask our product team

Secure UK checkout

1-year warranty

Expert support

UK Delivery Delivered directly to your door

1-Year Warranty Warranty included with your purchase

VAT Invoice Suitable for business purchases

View full details

Product information

Concealed power, built into the furniture.

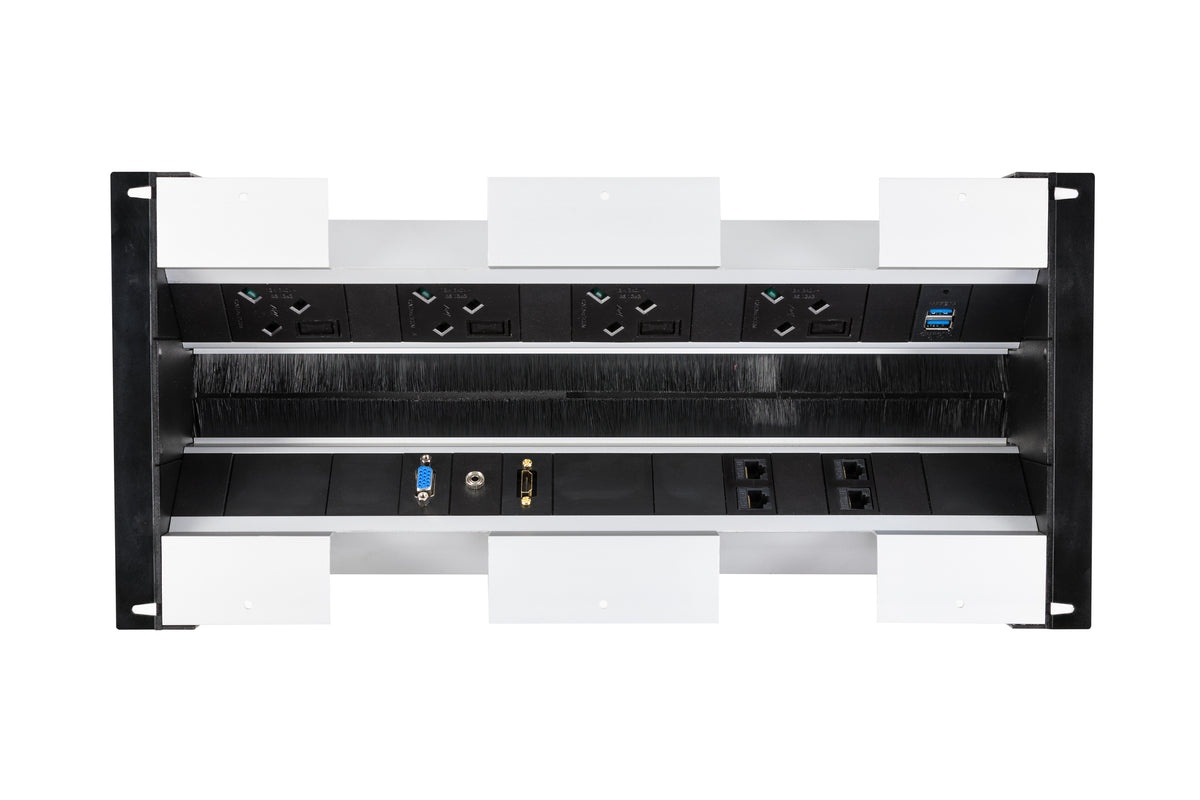

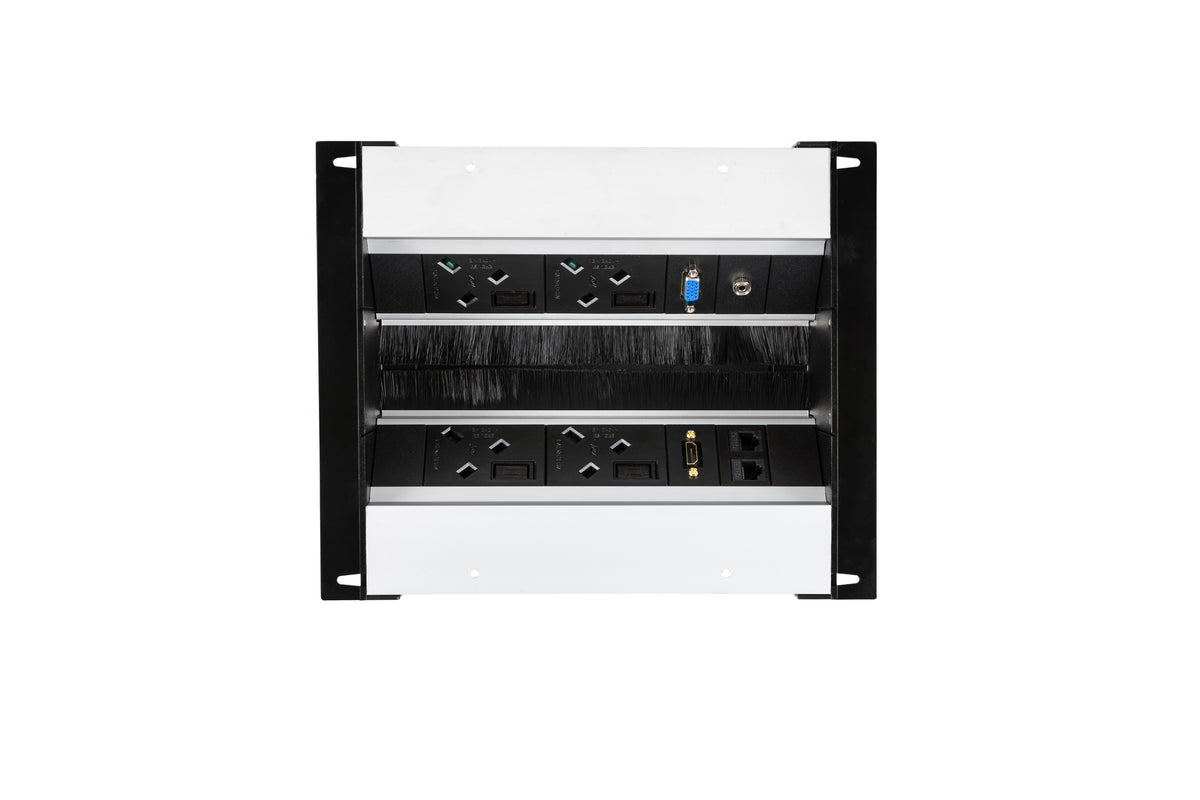

V-Dock is a concealed power and connectivity unit designed to mount beneath a boardroom or meeting-table surface. It can be configured with mains power, 90W dual USB-C charging, data and AV connections, while allowing the furniture manufacturer or installer to create a custom hinged lid, roller cover or removable top above the unit. This provides discreet access to essential connections while maintaining a clean tabletop finish.

Workspace ready

Designed for professional office and commercial environments.

Simple installation

Designed to make specification and installation straightforward.

Technical support

Product guidance and supporting information available.

Product overview

The V Dock is the perfect hidden unit that attaches to the under side of the work surface.

The V Dock is the perfect hidden unit that attaches to the under side of the work surface and allows for the end user to cover the unit with any hinged flap or roller cover of their design.

This is a made to order unit and lead times are approx. 5 weeks from receipt of order for delivery.

FEATURES

Available with modular protection modules (power filters, circuit breakers, earth leakage devices)
Up to 30 different international socket types can be fitted
Can be supplied with two or more circuits in one unit
Hybrid power (power and data in one unit)
Robust aluminium housing

Technical specifications

Product type: Concealed under-surface power and connectivity unit
Construction: Robust aluminium housing
Power sockets: UK mains power sockets available depending on the selected configuration
USB charging: 90W dual USB-C charging on USB-equipped configurations
Configuration: Customisable with combinations of mains power, USB charging, data, voice and AV connections
Connectivity options: Cat5e, Cat6, USB, HDMI, VGA, audio and RCA options are available
Circuit options: Can be configured with multiple circuits and protection modules
Protection options: Thermal-overload switches, circuit breakers and other protection modules are available depending on specification
Cable exit: Cables can exit horizontally or at a 45-degree angle from a selected corner
Base options: Rubber-flap, bristle or solid-base options are available
Electrical supply: 220–250V AC, 50Hz
Maximum documented load: 3000W, subject to the final configuration and applicable electrical regulations

ELECTRICAL

Operating Voltage: 220V - 250V AC @ 50 Hz

110V - 125V AC @ 60 Hz

Current: 15A (20A with upgraded wiring)

Max Power: 1800W @ 110V - 125V AC

3000W @ 220V - 250V AC

Dimensions and installation

Cut-out width: 126.5mm
Cut-out length: Varies depending on the selected configuration
Total unit height: Approximately 100.5mm
Maximum recommended worktop thickness: 100mm
Installation: Align beneath the prepared opening and secure using suitable M4 screws
Additional support: Longer units may require additional fixing points along the aluminium housing
Cover requirement: The tabletop lid, flap or cover must be designed and supplied as part of the furniture installation
Important: Obtain the approved configuration drawing before manufacturing the tabletop opening

Downloads

Download the V-dock in desk Power Unit Data Sheet

Delivery and warranty

Delivery charges shown apply to most UK mainland addresses. Some locations may be subject to an additional delivery charge. For delivery outside UK mainland, or to areas with restricted carrier coverage, please contact us for a quotation.

All purchases include a 1-year warranty.
